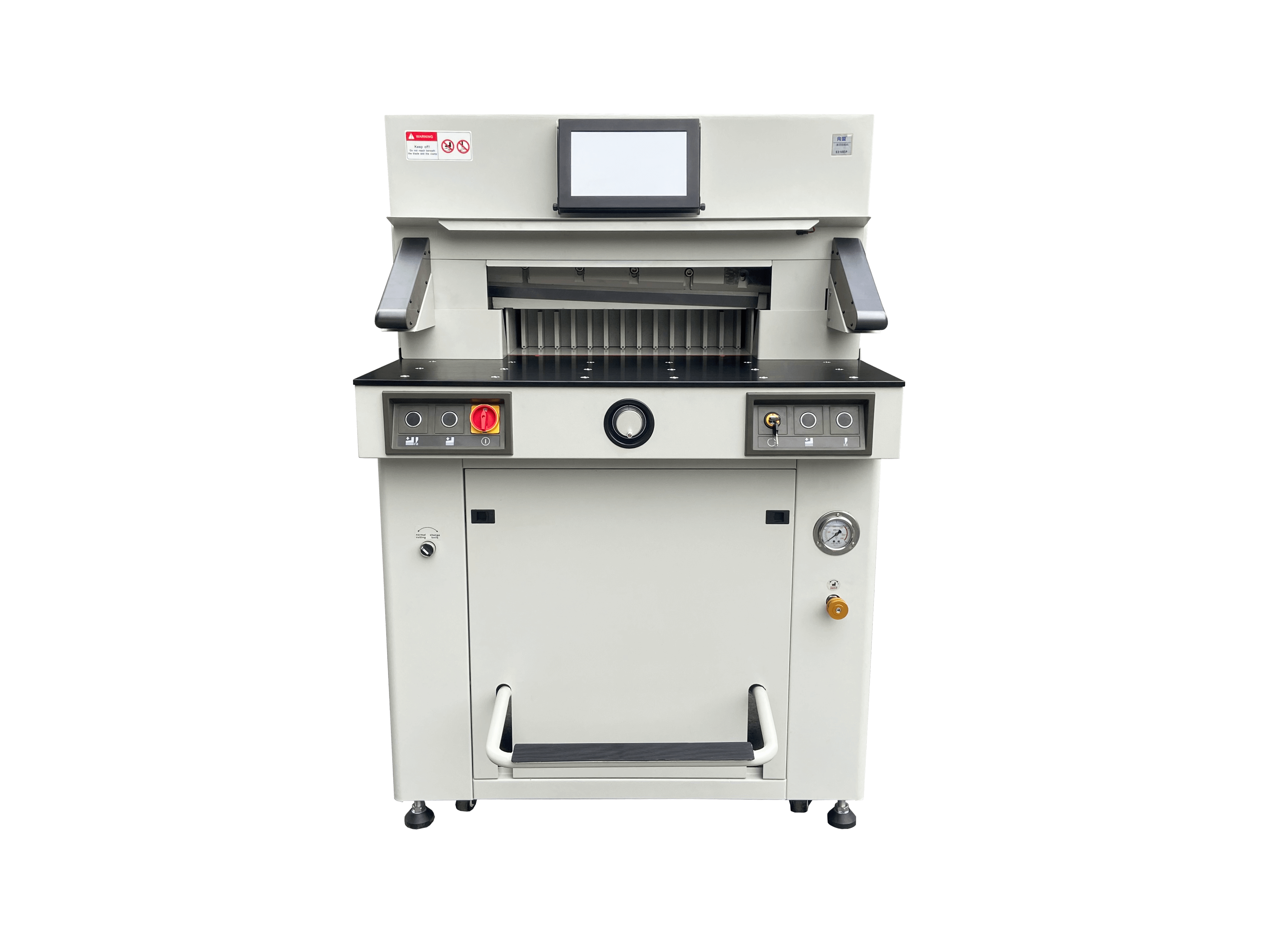

Heavy Duty Hydraulic Cutter 5311HP
Heavy Duty Hydraulic
Fully hydraulic system, foot pedal for pre-clamping, adjustable clamp pressure, 99 programs with 99 steps each, safety beam for safe operation, big color touch screen in mm/inch, LED working light for better working environment
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Cutting Width
530mm
Cutting Height
100mm
Narrow Cut
30mm
Cutting Depth
540mm
Dimensions (H x W x D)
1430 x 880x 1240mm
Power Supply
230V 50/60Hz 1PH 20A
Weight
380 kg
Detailed Features
- 99 programs with 99 steps each
- safety front inferred beam
- optical cutting line
- blade fine-depth can be system controlled
- electronic backgauge with touch pad
- safety two handed operation
- main power switch and safety key lock
- electonic hand wheel for backgauge fine postion
