JV330 Series
Mimaki

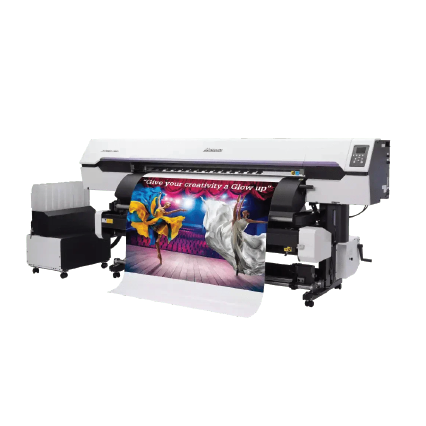

JV330 Series

Eco solvent printer

"330 Series" is a flagship model that combines Mimaki Engineering's technological expertise accumulated over more than 20 years to deliver beautiful image quality, high productivity, and high value added functions that assist in saving work.

The 330 Series further enhanced the chassis rigidity upon overall review of the hardware design from ground up, also improving the accuracy of droplet placement up to 650%* in comparison to our conventional product through innovative waveform control technology. And also features a new drop technology to suppress banding, meeting the professional requirements of our customers to achieve overwhelming high image quality and high productivity.

Price
POA

Contact us for a tailored quote based on your specific requirements

Talk to a Specialist
Our product experts are available to answer your questions
Print head
On-demand piezo head (2 staggered layout)
Print resolution
600dpi, 800dpi, 900dpi, 1200dpi
Ink
BS4 (C, M, Y, K)
Maximum print width
1,360mm / 1,610mm
Media cutting
Auto cutting by cutter of head unit *1
Power supply
Main unit:(Single phase AC100-120/200-240V±10%, 50/60Hz±1Hz) ×2
Power consumption
Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
Dimensions (W×D×H)
2,920 × 1,215 × 1,305 mm / 3,170 × 1,215 × 1,305 mm
Weight
358 kg / 368 kg

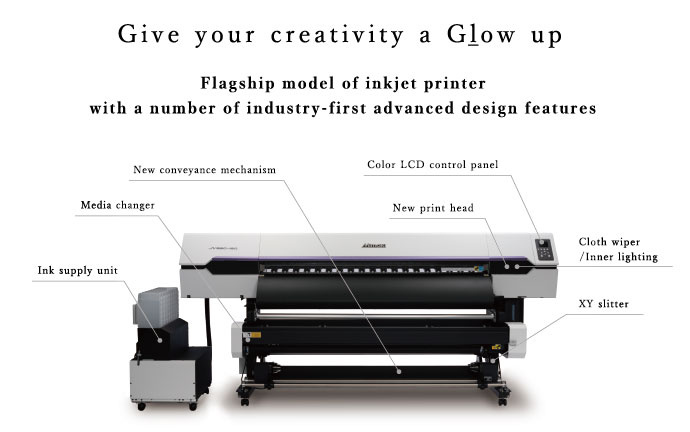

Detailed Features

  • Realizing high graphics with high image quality and definition
  • Adaptable to work requiring quick delivery by a high printing speed
  • XY slitter capable of reducing post-process work by X-axis & Y-axis sheet-fed cut
  • Evolution of Usability: Media Changer, V-shape cut function, New maintenance mechanism
  • New conveyance mechanism ensures reliable long hour print operation
  • Mimaki Remote Access (MRA) enables wireless printer operations
