Duplo

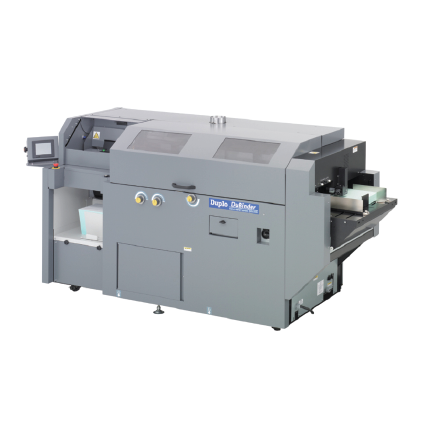

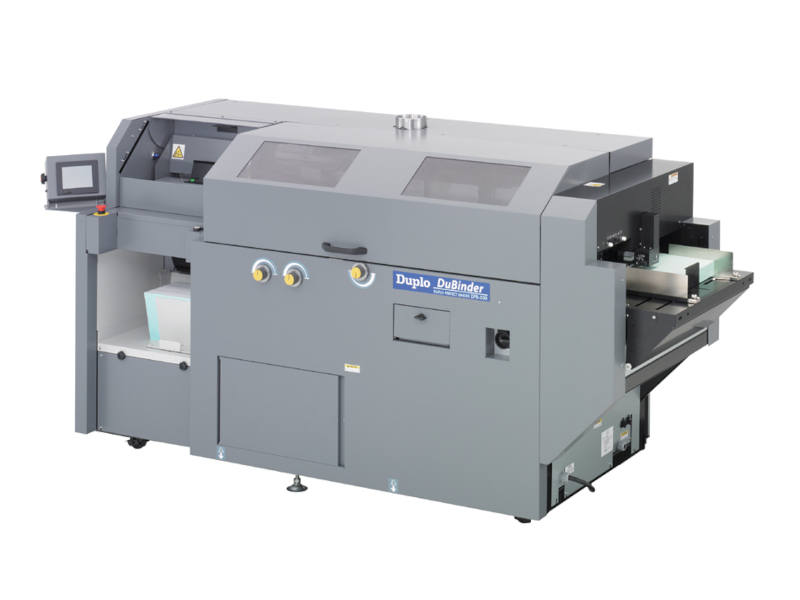

Duplo DPB-500
Perfect binder
You truly get your money's worth with the fast and supremely well-engineered Duplo DPB-500 machine. It's fully automatic and has a single clamp design, giving a cycle speed of 525 books per hour and with a start-up time of just 30-40 minutes, the DBP-500 is a highly cost-efficient binder.
With Duplo EVA glue you get an immediate curing time, your finished book can be opened and used in minutes. EVA glues are a viable alternative to other glues that are more expensive and take longer to dry.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Book Block
【Binding thickness】 1 to 51 mm +cover thickness 【Maximum size】 360 (L) x 320 (H) mm 【Minimum size】 120 (L) x 120 (H) mm 【Book block form】 Sheet, single-folded, double-folded 【Paper type】 Fine 52 to 157 g/m² Art/Coated 79 to 157 g/m²
Cover
【Feeding method】 Belt suction(Separating air, separator manual non-step adjustment) 【Maximum size】 360 (L) x 696 (W) mm 【Minimum size】 120 (L) x 250 (W) mm 【Paper type】 Fine 81.4 to 302 g/m² Art/Coated 104.7 to 302 g/m² 【Stack height】 70 mm if the length is 170 mm or shorter, 40 mm
Maximum Binding Speed
525 cycle/hour
Milling
Maximum 4 mm(0.16 inch) Manual 6 step adjustment: 0, 0.5, 1.0, 2, 3, 4 mm(0, 0.02, 0.04, 0.08, 0.12, 0.16 inch)
Gluing
【Glue thickness】 0.5 to 2.25 mm ※adjust the height of the drums manually 【Drum】 2 + spine meter roller 【Side glue】 Roller method 【Glue cutting】 Solenoid-driven 【Warm-up period】 Approximately 30 minutes ※varies depending on the hot melt glue type and environment
Dimensions
2,790(W) x 928(D) x 1,343(H) mm
Weight
725.5kg
Detailed Features
No features available
