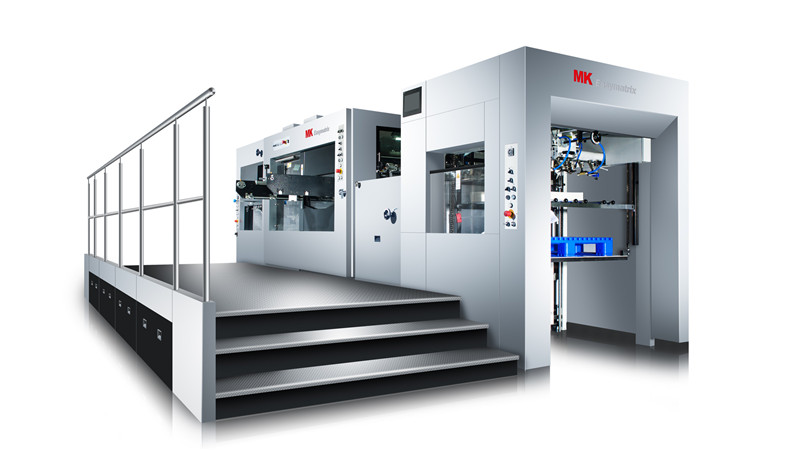

Easymatrix 106 C/CS
HEIDELBERG

Easymatrix 106 C/CS

Value die-cutting and embossing

With its wide range of processable materials, the Easymatrix 106 C/CS not only appeals to straightforward folding carton producers, but is also suitable for classic commercial applications (e.g. greeting cards, folders, tickets, flyers, brochures, etc.).

The machine is available as C version or CS version. The C version features a die-cutting station, while the CS version comes equipped with an additional stripping station. The stripping station allows for mechanical removal of internal waste, lateral edges and the rear edge of the sheet (depending on the sheet layout). This reduces downstream manual work to a minimum or even eliminates it completely.

The Easymatrix 106 C/CS offers many benefits to commercial and packaging printers alike:



  • Simple operating concept
  • Short makeready times
  • High flexibility thanks to extended range of materials
  • Accommodates smaller die-cutting tools
  • Attractive price-performance ratio



The basic model is already equipped with all functions and equipment to start the production

Price
POA

Contact us for a tailored quote based on your specific requirements

Talk to a Specialist
Our product experts are available to answer your questions
Sheet format (min.)
360 × 400 mm (14.17x15.74 in) 300 x 350 mm (option) (11.81x 13.77 in)
Sheet format (max.)
750 × 1,060 mm (29.52x41.73 in)
Machine speed (max.)
7,700 sheets per hour
Die-cut pressure (max.)
2.6 MN/260 t
Paper (min.)
90 g/m²
Carton/solid cardboard (max.)
2,000 g/m²
Corrugated cardboard (max.)
4.0 mm

Detailed Features

  • Non-stop function in feeder and delivery
  • Integrated cutting plate fine adjustment
  • Motorized die-cutting pressure adjustment
  • Chase frame changer for die preparation outsidethe machine (option)
  • Quick-lock chase for easy and quick clamping of cutting tools (option)
  • Quick-lock chase with fine adjustment for quick and easy setup of the stripping tools (option)
Download brochure
PDF · · Updated 2025-12-02
