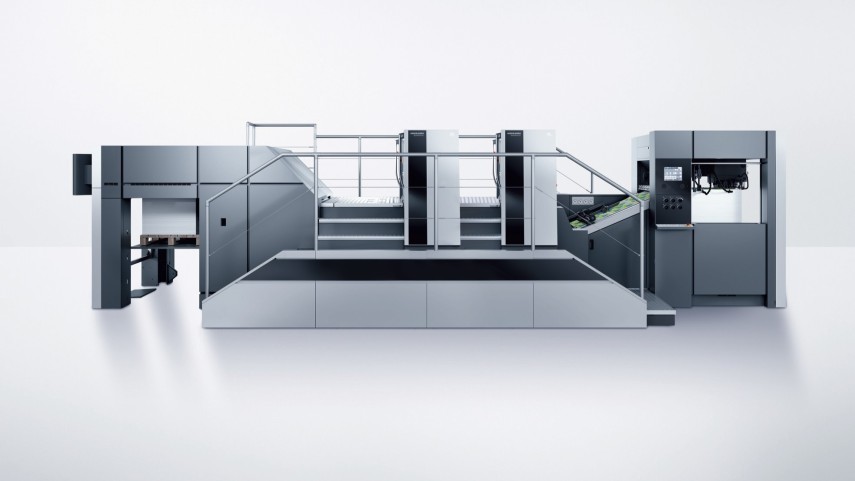

MK Speedmaster XL 106-D/DD

Rotary die-cutting with Speedmaster XL technology

The Speedmaster 106-DD twin-unit die-cutter combines another important production step in a single operation. The first unit places the injection hole with extreme precision by means of a die on a magnetic cylinder. Even the tiniest holes of five millimeters diameter are possible. The waste is reliably removed by an additional extraction system.

The compact Speedmaster XL 106-D single-unit die cutter boasts a small footprint and low investment costs. With the Speedmaster XL 106-D/DD, you benefit from maximum stability and cut quality. It is the combination of new optimized side walls, stiffer die-cutting cylinders, reinforced bearings and improved anti-static devices on the feeder and delivery that ensures optimized sheet travel and thus high production speeds of up to 10,000 sheets per hour.

Price

POA

Talk to a Specialist

Our product experts are available to answer your questions

graphco@graphco.jo +962 6 490 1010

Max. speed

15,000 sheets per hour

Production speed

6,000 - 10,000 sheets per hour

Substrate thickness

0.03 to 0.3 mm (0.0012 to 0.012 in) 50 to 80 µm (1,969 to 3,150 µin)

Processable label size or sheet format

Independent of shape; min. 340 x 480 mm (13.38 x 18.90 in) max. 750 x 1,060 mm (29.53 x 41.73 in)

Detailed Features

Maximum die-cutting format of 740 mm x 1,050 mm (29.13 in × 41.34 in) with material thickness from 0.03 mm to 0.3 mm / film thickness 50-80 µm
Equipped with Preset Plus Feeder and Preset Plus Delivery
Antistatic equipment for foil for the feeder, die-cutting unit and delivery
Two suction segment disks transfer the sheets from the impression cylinder to the sheet guide plates
Sheet guide plates are equipped with Venturi nozzle technology
Dynamic sheet brakes in the delivery
