HEIDELBERG

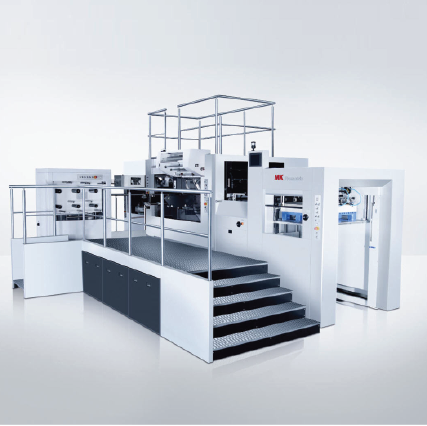

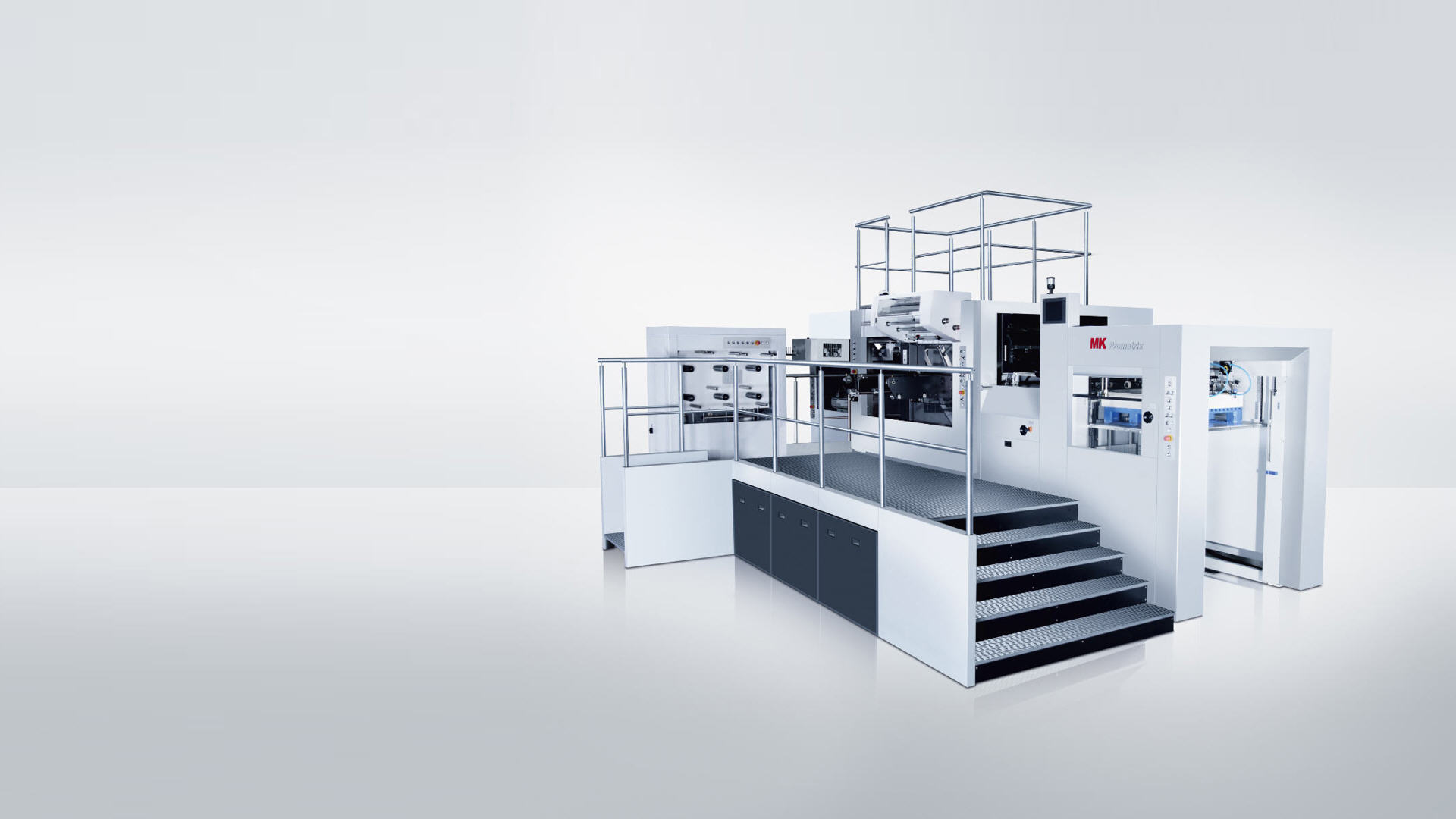

MK Ecofoil 106 FC
Value hot foil stamper
The Ecofoil 106 FC combines precise foil application with high productivity to meet the needs of ambitious packaging printers. With a foiling pressure of up to 300 tons and speeds of up to 7,500 sheets per hour, it enables high-quality hot foil stamping, embossing, and optional holographic effects. Advanced control and monitoring features ensure reliable operation, while optimized foil usage can reduce material consumption – resulting in lower costs and increased output of additional sheets.
The Ecofoil 106 FC offers many benefits to commercial and packaging printers alike.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Sheet size (max.)
760 x 1,060 mm (29.92 x 41.73 in)
Sheet size (min.)
360 x 450 mm (14.17 x 17.72 in)
Cutting pressure (max.)
1150 mm (45.28 in)
Max. height delivery pile (incl. Pallet)
1000 mm (39.37 in)
Paper (min.)
90 g/m² (26.5 lb/1000 ft²)
Carton board (max.)
2,000 g/m² (590 lb/1000 ft²)
Corrugated (max.)
4.0 mm (0.157 in)
Dimensions of the machine (LxBxH)
5,930 x 4,475 x 2,325 mm (233.46 x 176.18 x 91.54 in)
Running speed (max.)
7,500 sheets/hour
Hot Foil stamping speed (max.)
6,500 sheets/hour
Detailed Features
- Value-class foil stamping
- Reduced foil consumption
- Accurate registration and finishing
- Increased yearly output
- Operator-friendly design
