Mimaki

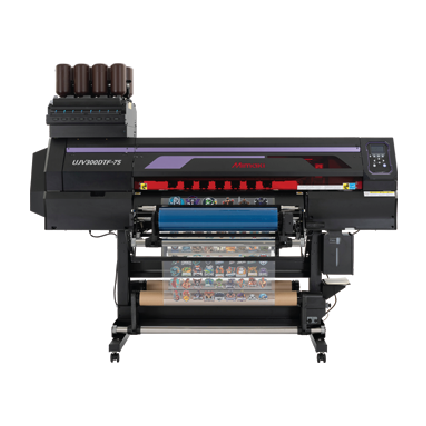

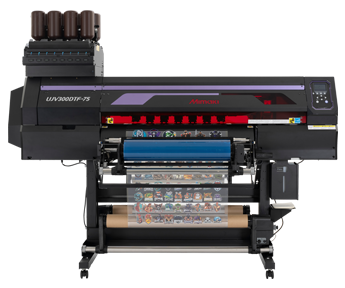

UJV300DTF-75
UV DTF
"UJV300DTF-75" is a Mimaki's first UV-DTF (UV curable – Direct To Film) printer.
UV-DTF is a decoration method in which a design printed on a special film is transferred to the target material. It can easily decorate the surface of materials with uneven or curved surfaces, which has been difficult with conventional UV printing.
UV-DTF's exclusive film consists of two parts: a glued film and a transfer sheet.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Print head
On-demand piezo head
Print resolution
300dpi, 600dpi, 900dpi, 1200dpi
Ink
UV curable flexible ink ELS-170 (C, M, Y, K) UV curable hard ink ELH-100 (White, Clear)
Ink circulation system
Available only for white ink
Max. print width
640 mm (25.2 in)
Power supply
Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption
AC100V: 1.44kW or less / AC200V: 1.92kW or less
Dimensions (W×D×H)
2,090 x 930 x 1,475 mm (82.3 x 36.6 x 58.1 in)
Weight
180 kg (396.8 lb)
Detailed Features
- Mimaki's unique safe and stable film feeding system
- Newly developed environmentally friendly next-generation UV ink
- Design software (included as standard)
