HEIDELBERG

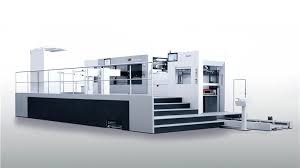

MK Mastermatrix 106 CSB
Peak Performance die-cutting and embossing
The Mastermatrix 106 CSB redefines performance: With a top speed of up to 9,000 sheets per hour, reduced makeready times, and full integration into the Prinect Workflow, it is the ideal choice for folding carton manufacturers with the highest demands. From the efficient production of everyday packagings to postpress for unusual carton designs – this sheetfed die-cutter delivers precision and efficiency on every job.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Sheet format (min.)
350 × 400 mm
Sheet format (max.)
760 × 1,060 mm
Machine speed (max.)
9,000 sheets per hour
Die-cut pressure (max.)
2.6 MN/260 t
Paper (min.)
90 g/m²
Carton/solid cardboard (max.)
2,000 g/m²
Corrugated cardboard (max.)
2.0 mm / 3.2 mm (option)
Detailed Features
- Die-cutting platen press with camshaft drive
- Max. machine speed: 9,000 sheets per hour.
- QuickSet Device for fast format changes
- MasterSet for optical sheet alignment
- Cutting plate with quick-action clamping system
- Logistics system and non-stop system in the feeder (option) and delivery
- EasyRake for easier adjustment of the non-stop rake system in the delivery
- Sample sheet removal during production
- Folding carton production at the highest level
- Faster machine speed for greater productivity
- Intelligent solutions in all machine stations for short changeover times
