POLAR

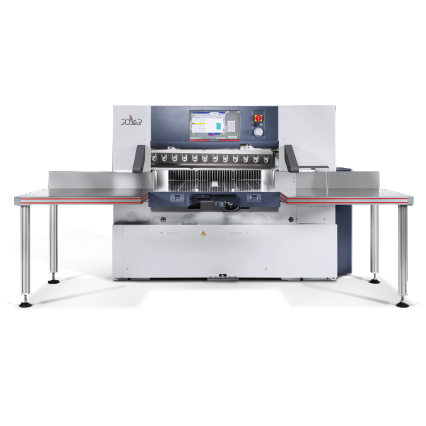

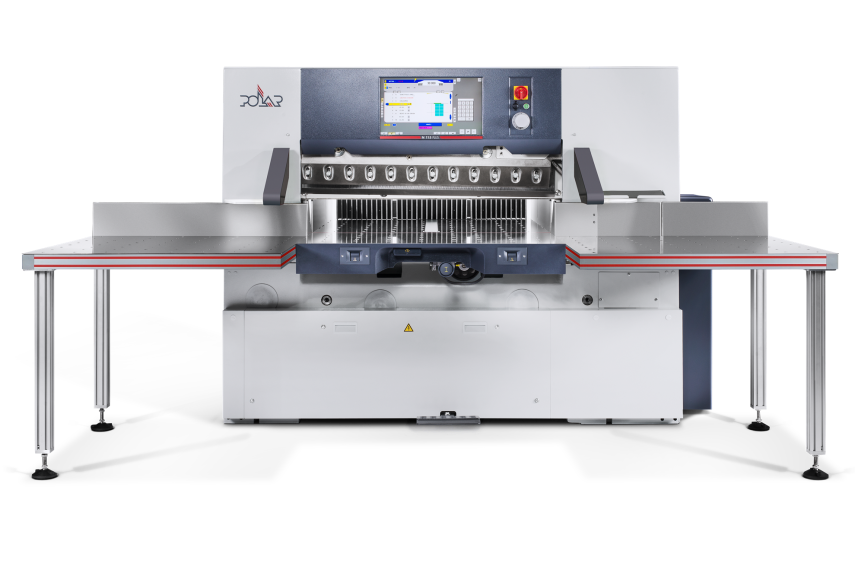

POLAR N 115
Best-selling high-speed cutter
The allrounder with 18.5“ color display and touch-screen
operation is suitable for all standard cutting jobs. Featuring
automatic graphic programming it ensures a highlyautomated process.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Cutting width
1.150 mm
Feeding depth
1.150 mm
Loading height max.
165 mm
Safety clamp pressure
30 daN
Clamp pressure, min
150 daN
Clamp pressure, max.
4.500 daN
Backgauge speed on return way (0 - ...)
300 mm/sec
Knife speed
45 cycles/min
Smallest cut, automatically, without false plate
25 mm
Smallest cut, automatically, with false plate
95 mm
Detailed Features
- Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
- High productivity by a great number of programmable additional functions
- Shortest make ready times thanks to intuitive cutting program generation via block programming or even Compucut
- Greatest cutting accuracy due to the POLARPositioning-System DPS with a mechanical positioning accuracy of 1/100 mm
- Highly reliable in daily use and long lifespan as a result of the stability of the one-piece machine frame, knife drive with worm gear drive and compact closed hydraulic system
Order the product now and we will contact you within 24 hours.
