POLAR

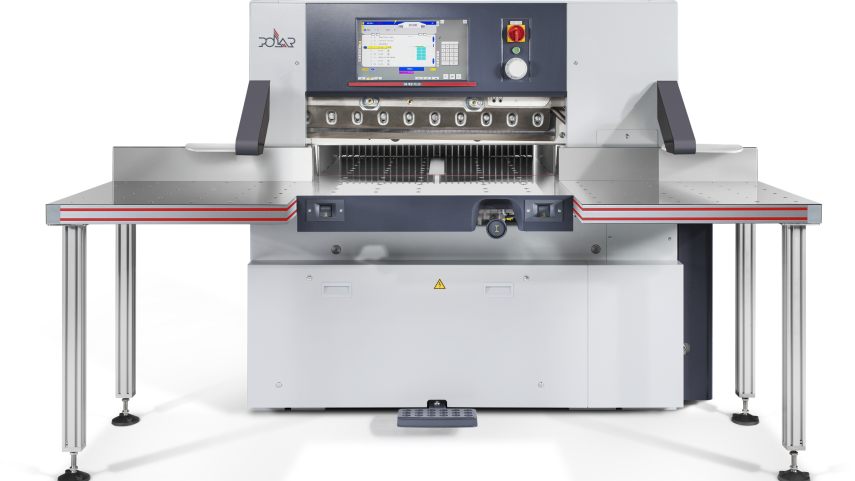

POLAR N 92
With a model for price-sensitive investors
The High-Speed Cutter POLAR N 92 is mainly used in the
half-size range. Formats up to a diagonal of 920 mm can be
easily handled and turned in the high-speed cutter. Cutting
material with larger formats can only be turned on the front
table. The High-Speed Cutter has extensive features in the
standard equipment already which can increase the
productivity up to 20% The high-speed cutter can be
upgraded with peripheral equipment (lift, jogger) to a
cutting system.
Price
POA
Contact us for a tailored quote based on your specific requirements
Talk to a Specialist
Our product experts are available to answer your questions
Cutting width
920 mm
Feeding depth
920 mm
Loading height max.
130 mm
Safety clamp pressure
30 daN
Clamp pressure, min
150 daN
Clamp pressure, max
3.500 daN
Backgauge speed on return way
300 mm/sec
Knife speed
45 cycles/min
Smallest cut, automatically, without false plate
25 mm
Smallest cut, automatically, with false plate
90 mm
Detailed Features
- Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
- High productivity by a great number of programmable additional functions
- Shortest make ready times thanks to intuitive cutting program generation via block programming or even Compucut
- Greatest cutting accuracy due to the POLARPositioning-System DPS with a mechanical positioning accuracy of 1/100 mm
- Highly reliable in daily use and long lifespan as a result of the stability of the one-piece machine frame, knife drive with worm gear drive and compact closed hydraulic system
