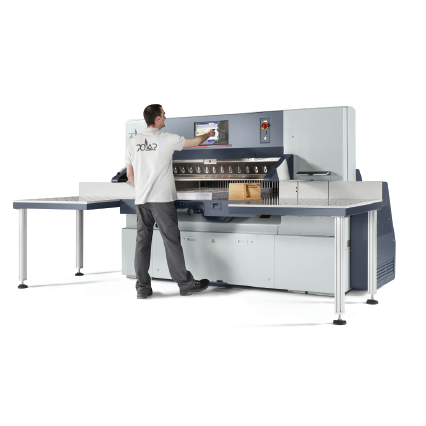

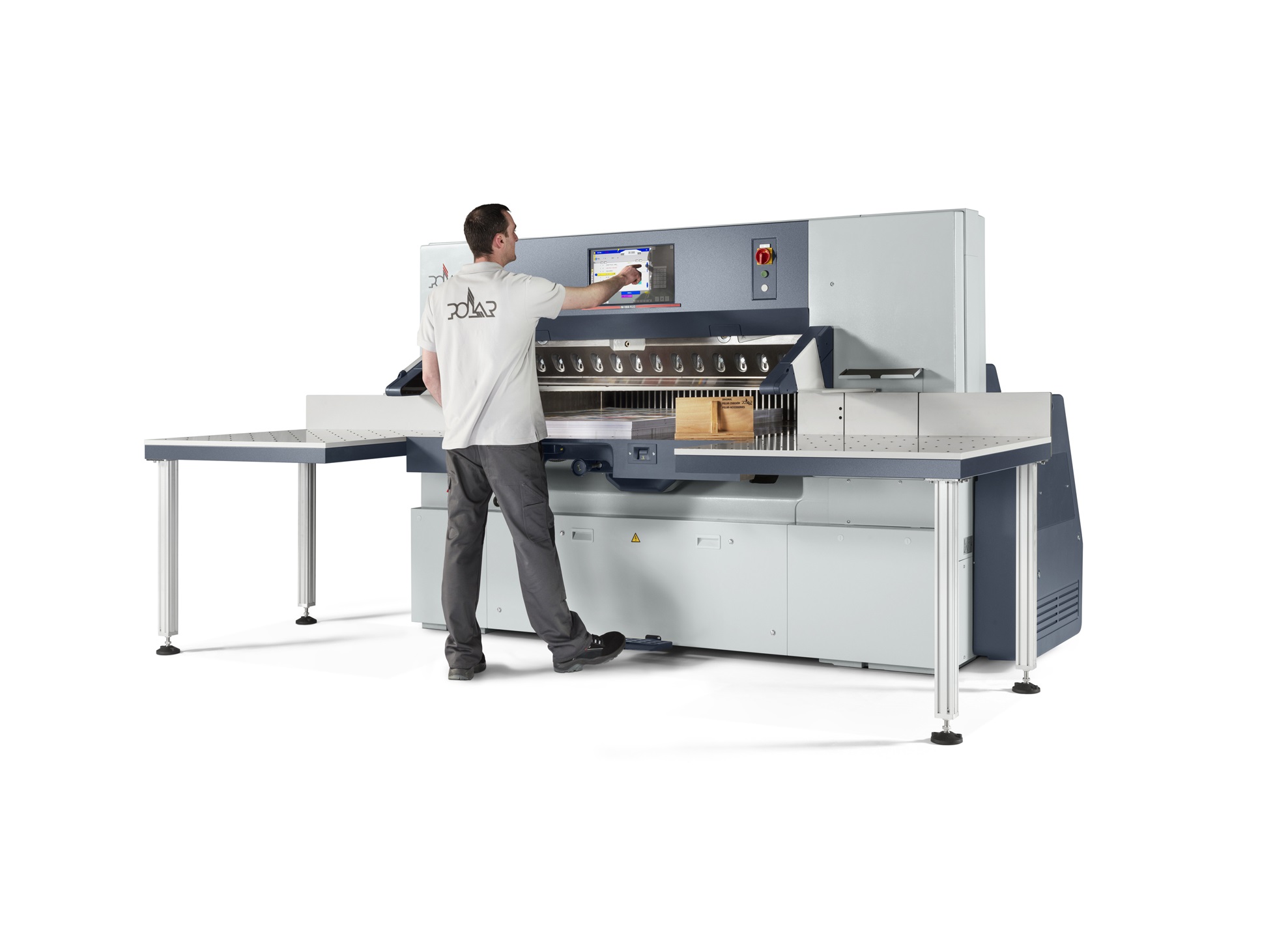

POLAR N 176 PRO

The biggest model of the 11th machine generation

The programmable high performance model with a
capacitive 21.5'' Touch-Screen display and real image
preview is ideal for high-end applications - thanks to job
specific programmable parameter, label and distortion
correction as well as an extended range of options.
The High-Speed Cutter POLAR N 176 is mainly used in the
large-size range. Formats up to a diagonal of 1,760 mm can
be easily handled and turned in the high-speed cutter.
Cutting material with larger formats can only be turned on
the front table. The High-Speed Cutter can be upgraded
with peripheral equipment (lift, jogger, buffer, transport
grippers, loading and unloading system) to a cutting
system.

Price

POA

Talk to a Specialist

Our product experts are available to answer your questions

graphco@graphco.jo +962 6 490 1010

Cutting width

1,760 mm

Feeding depth

2,250 mm

Loading height max.

165 mm

Safety clamp pressure

50 daN

Clamp pressure, min

150 daN

Clamp pressure, max

7,000 daN

Backgauge speed on return way (0 - ...)

1,600 mm/sec

Knife speed

45 cycles/min

Smallest cut, automatically, without false plate

35 mm

Smallest cut, automatically, with false plate

120 mm

Detailed Features

Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
The automatic trim removal can increase your productivity up to 30%
Shortest make ready times thanks to intuitive cutting program generation via block programming or even Compucut
Greatest cutting accuracy due to the POLARPositioning-System DPS with a mechanical positioning accuracy of 1/100 mm
Highly reliable in daily use and long lifespan as a result of the stability of the one-piece machine frame, knife drive with worm gear drive and compact closed hydraulic system
