POLAR D 66
POLAR

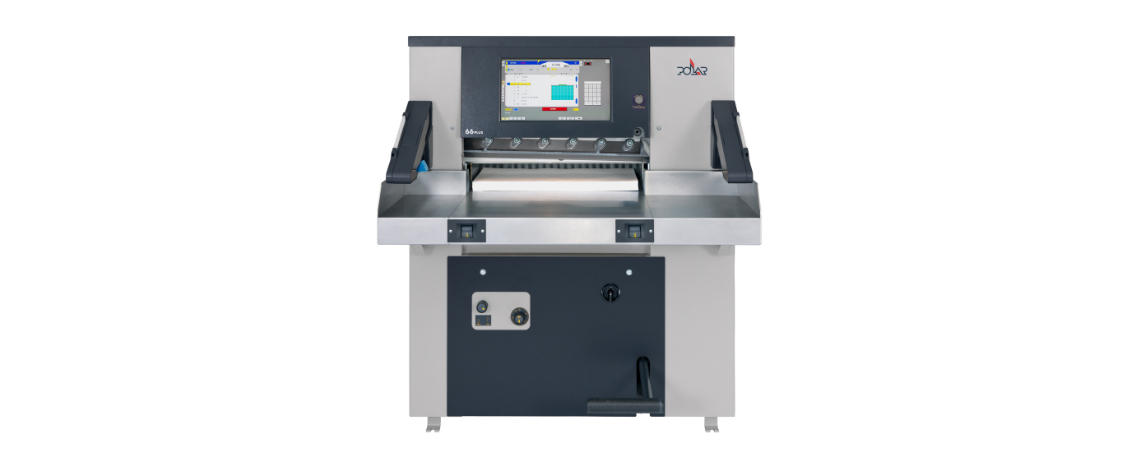

POLAR D 66

Sturdy, cutting width up to 67 cm

The cutter POLAR 66 is designed for one-shift operation. The precise and gentle swing cut is carried out hydraulically. Thus, the time of the knife spent in the lower dead end can be adapted to the material. The ultrasmooth stainless table surface allows an easy handling of the material even without air jets. Within a wide setting range the clamping pressure can be adjusted infinitely to each cutting material by means of a turning knob with scale. Bright LEDs mark the cutting line clearly visible for the operator. The operation of the machine is done via an ergonomically positioned 18.5’’ touch-screen display. Recurring cutting sequences can be memorized (memory capacity 1,998 programs) and adapted at any time. With the process visualization the handling of the material is displayed graphically and so the risk of errors significantly downsized. To optimize the cutting quality the pre-clamping time can be adjusted according to the material. Optionally, the machine can be integrated into the digital workflow via P-NET Compucut®.

Price
POA

Contact us for a tailored quote based on your specific requirements

Talk to a Specialist
Our product experts are available to answer your questions
Cutting width
670 mm
Feeding depth
670 mm
Feeding height max.
80 mm
Clamp pressure min.
200 daN
Clamp pressure max.
1,500 daN
Backgauge speed on return way (0 - ...)
70 mm/sec
Smallest cut, automatically, without false plate
15 mm
Smallest cut, automatically, with false plate
50 mm
Dimensions (w × d × h)
1,250 × 1,825 × 1,500 mm

Detailed Features

  • Machine frame with optimized stability for optimum absorption of cutting forces and greatest cutting accuracy
  • Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
  • Greatest cutting accuracy due to the POLARPositioning-System DPS
  • Process visualization for the graphical display of the material handling to minimize the risk of errors
