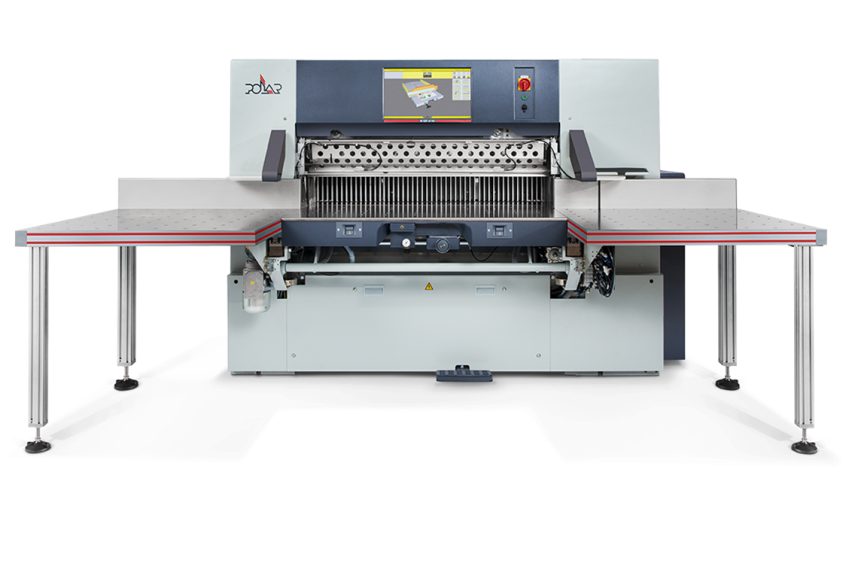

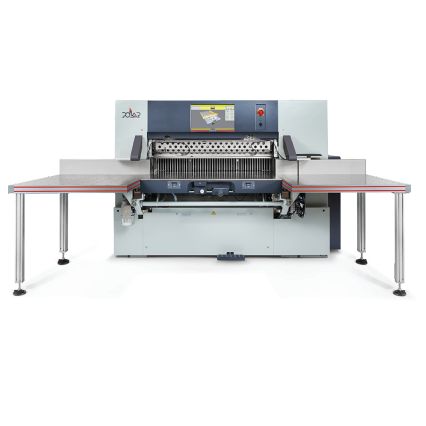

POLAR N 137

The basis for all highly-automated PACE systems

This allrounder with 18.5“ color display and touchscreen operation is suitable for all standard cutting
jobs. It features automatic graphic programming to
ensure a highly-automated process.
Examples of equipment: Graphic operator guidance,
with various language packages. Change-over
measurement system (metric, inch or shaku).
Configurable user interface, OptiKnife knife changing
system and many other features.
The High-Speed Cutter POLAR N 137 is mainly used in
the medium-size range. Formats up to a diagonal of
1,370 mm can be easily handled and turned in the highspeed cutter. Cutting material with larger formats can
only be turned on the front table. The High-Speed
Cutter has extensive features in the standard
equipment already which can increase the productivity
up to 20%. The High-Speed Cutter can be upgraded
with peripheral equipment (lift, jogger, buffer, transport
grippers, loading and unloading system) to a cutting
system.

Price

POA

Talk to a Specialist

Our product experts are available to answer your questions

graphco@graphco.jo +962 6 490 1010

Cutting width

1,370 mm

Feeding depth

1,450 mm

Loading height max.

165 mm

Safety clamp pressure

30 daN

Clamp pressure, min

150 daN

Clamp pressure, max

5,500 daN

Backgauge speed on return way (0 - ...)

300 mm/sec

Knife speed

45 cycles/min

Smallest cut, automatically, without false plate

25 mm

Smallest cut, automatically, with false plate

95 mm

Detailed Features

Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
High productivity by a great number of programmable additional functions
Shortest make ready times thanks to intuitive cutting program generation via block programming or even Compucut
Greatest cutting accuracy due to the POLARPositioning-System DPS with a mechanical positioning accuracy of 1/100 mm
Highly reliable in daily use and long lifespan as a result of the stability of the one-piece machine frame, knife drive with worm gear drive and compact closed hydraulic system
